JW Fishers MLFP 1 Multi Low Frequency Pinger - Underwater Locator Beacon for Marine Search & Rescue, Shipwreck Recovery, and Scientific Research

MLFP-1 Multi Low-Frequency Pinger by JW Fishers

Underwater acoustic pingers are devices that emit acoustic signals. They are used to identify an underwater site or piece of equipment so that a returning diver equipped with a pinger receiver can pinpoint the exact location.

Underwater acoustic pingers are devices that emit acoustic signals.
They are used to identify an underwater site or piece of equipment so that a returning diver equipped with a pinger receiver can pinpoint the exact location. Different broadcast frequencies are available for pingers, allowing multiple to be deployed in the same geographic region without interfering with one another. The diver tunes his pinger receiver to the targeted pinger's frequency, and the receiver directs him directly to it. These low-frequency acoustic pingers have a range of 3 to 6 miles, whereas ordinary mid-frequency (30 to 40 kHz) pingers have a range of several thousand feet.

The operator may adjust the number of pulses per second, the duration of each pulse, and the output power for the acoustic pingers manufactured by Fishers. The operator is able to vary the distance at which pingers can be detected by altering the pulse duration and output strength. Before deployment, the operator can choose the transmission frequency for the MLFP-1. These characteristics render the pingers very adaptable and the best option for practically any application.

Optional PC Software enables the user of a laptop to fine-tune the variable parameters, including the selection of delayed start (from a minute to a 365-day delay start). The pingers are powered by regular alkaline batteries that, depending on output power and pulse selection, last from a few weeks to several months. Extended Functioning Life housing and Very Long Duration housing (hold more batteries) are available, which greatly prolong the operating time.

Features

The pinger can be engaged automatically when submerged in water or manually through the circuit board. Our special, two-year, UNCONDITIONAL guarantee covers all Fishers pingers.

Technical Data:

• VERY LONG RANGE (3 to 6 miles)
• OPERATOR ADJUSTABLE OUTPUT POWER, PULSE
• WIDTH AND PULSE REPETITION RATE
• MANUAL TURN-ON OR WATER ACTIVATED
• DIFFERENT FREQUENCIES AVAILABLE
• USES STANDARD BATTERIES
• 1,000 FOOT OPERATING DEPTH
• ADDITIONAL FEATURES FOR MLFP-1
• OPERATOR SELECTABLE FREQUENCIES (11-16 kHz)
• DELAYED START (Optional)

Specifications:

MLFP-1

Frequency 11 to 16 kHz (in 500 Hz steps)

Power output (adj) 177 to 195 dB

Pulse length (adj) 2,3,4 or 10 ms

Pulse rep sec (adj) 1/2, 1 or 2 seconds

Batteries* twelve 9 volt**

* Alkaline or Lithium batteries can be used

** Extended Operation Housing uses twenty “D” cell batteries

*** Battery life - weeks to months depending on the power option selected. Extended Operation Housing yields 7 times the battery life

DIMENSIONS/WEIGHTS:

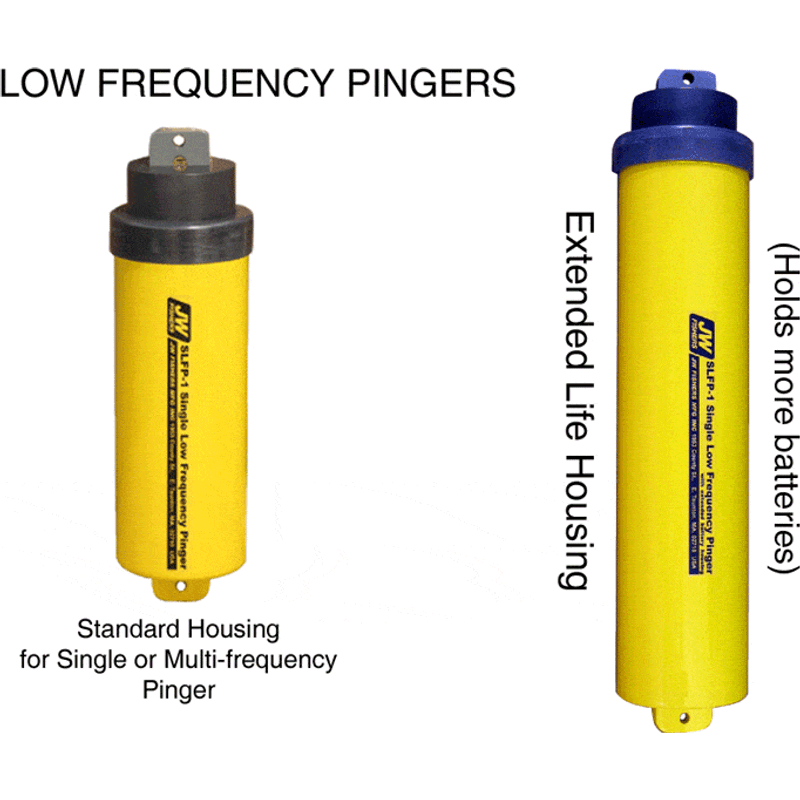

Standard Operation Housing - 4.75”D x 14.5”L - 7 lbs. air/ -4 oz. water

Extended Operation Housing - 4.75”D x 22”L - 14 lbs. air/ -2.5 lbs. water

MATERIALS/COLOR:

Housing - High impact PVC/yellow

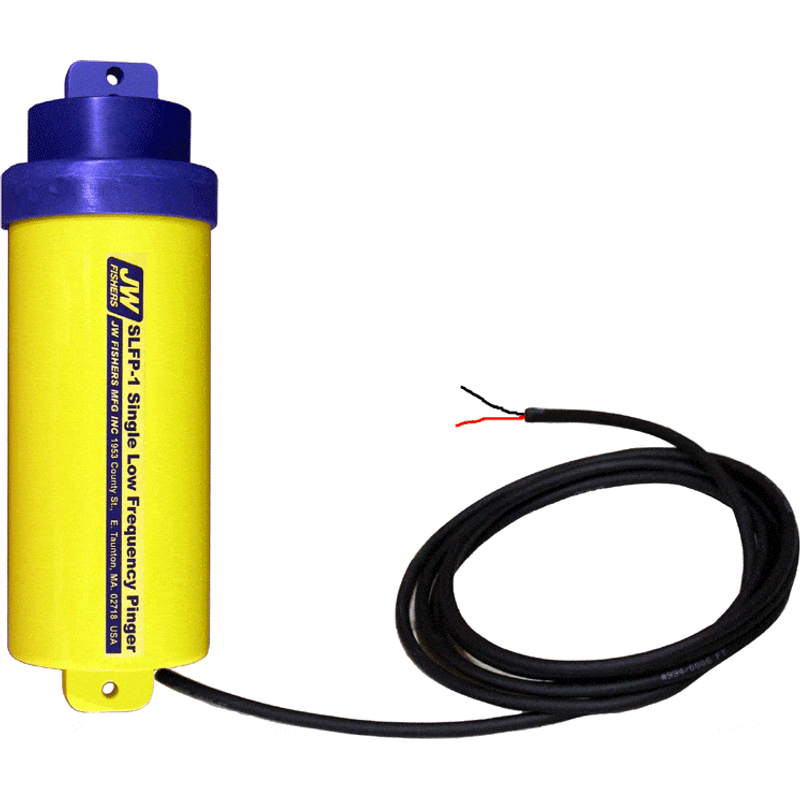

Single Low-Frequency Pinger (SLFP-1) and Multi Low-Frequency Pinger are members of JW Fisher's line of commercial grade low-frequency acoustic pingers (MLFP-1). The SLFP-1 is offered in 11-16 kHz in 1 kHz increments, one of which must be specified at the time of purchase. The MLFP-1 allows the user to pick frequencies between 11 and 16 kHz in 500 Hz increments. Before deploying the pinger, the operator chooses among eleven distinct frequencies.
