Description
Are you looking for a digital line tracer that is easy to use, rugged and utilizes the latest technologies? Experience the latest in digital line tracing from Fisher, the oldest name in metal detection technologies. For first time users or seasoned professionals, the Fisher TW-82 digital line tracer is easy to use. Just turn it on and begin locating right away. Unlike older non digital units, the Fisher TW 82 has a digital display that visually guides you to your target. You will be amazed at the capabilities and exceptional simplicity of operation. The TW-82 is designed to trace all conductive lines including pipes, cables and conductive electrical lines.
The TW82 from Fisher Research Labs is designed specifically to trace conductive electrical lines, as a cable locating system, as a pipe locator, and for a wide variety of utility types. This cable locator, provides a continuous readout for fast accurate tracing and has an easy to read LCD display which displays target depth and ground conditions. Accurate repeatable readings of the output signal produced by buried utilities are also shown on the display and include the utility direction indication.
Related products that are shown in the compatible options tab on this page. Popular accessories include a hard case, coupling clamp, a ground rod assembly and a Sonde. This Utility Locating Tool is • lightweight • accurate • has an ip65 compliant housing. The transmitter offers one-button operation for ease of use while tracing lines. Simple four button receiver operation makes this model straight forward to use. Complete user details are shown in the included instruction manual. This utility locator can be ordered with or without passive power detection.
"When we first heard that Fisher Research was looking to develop a new digital line tracer, we were excited to see what they would come up with. The end result was worth the wait. The TW-82 has revolutionized the industry!"
- Michael Bernzweig, Detector Electronics Corp.
Fisher TW-82 Digital Line Tracer Specifications:
Rugged Construction
- IP65 Compliant (stands up to water jets)
- Impact Resistant
- Weatherproof
Easy to Use
- Full Time Continuous Readouts
- One Button Receiver Operation
- Ergonomic Design - Lightweight
High Performance
- Ultra Fast Response
- Powerful Inductive Transmitter
- Accurate, Repeatable Readings

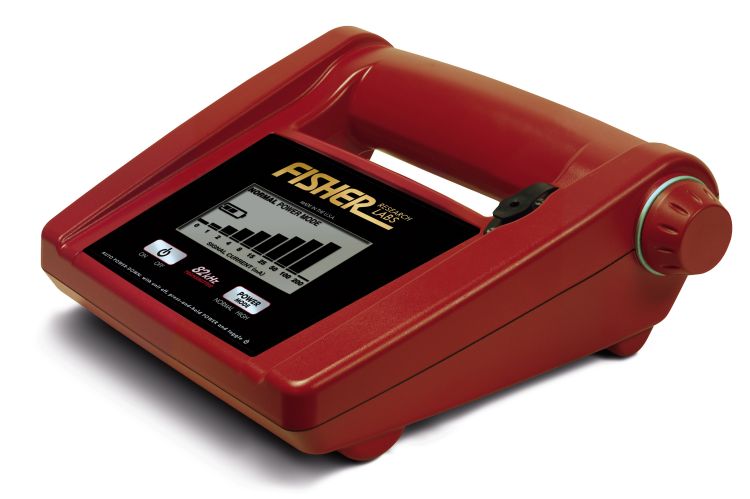

Fisher TW-82 Digital Line Tracer Transmitter Specifications
| Output Frequency | 82.175 kHz |
| Output Power (nominal) | Normal Setting = 0.25 watt High Setting = 1.0 watt |
| Conductive Tracing Magnetic Strength | 2 to 3,000 ohms normal power-6dB 2 to 8,000 ohms high power-6dB |
| Inductive Tracing Magnetic Strength | 15 Vm2, normal power 25 Vm2, high power |
| Battery Type | Four D-cell batteries (included) |
| Battery Life | 160 hours in normal power mode |
| Weight, with batteries | 3.73 lbs |

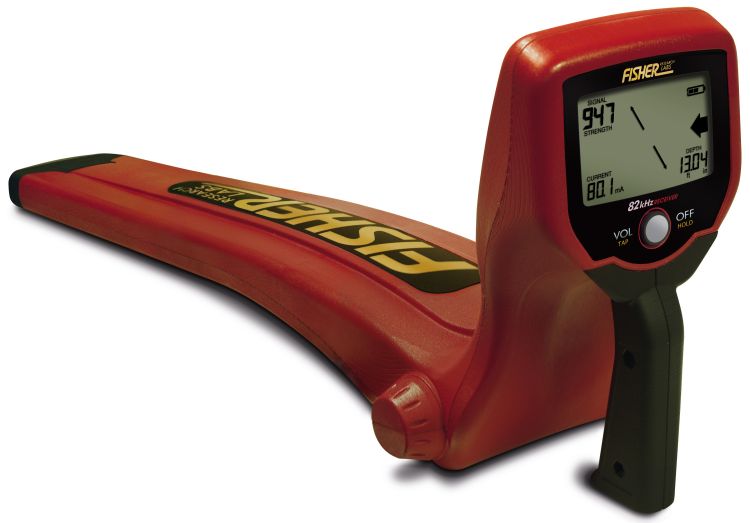

Receiver Specifications
| Frequency | 82.175 kHz |
| Left/Right Guidance | Audible and Visual |
| Azimuth Indicator | Audible and Visual |
| Over-Target Indicator | Visual |
| Battery Status | Visual |
| Signal Strength Indicator | Numeric display & audible |
| Signal Current Measurement | Numeric display, automatic |
| Depth Measurement | Numeric display, automatic |
| Battery Type | Two D-cell batteries (included) |
| Battery Life | 40 hours |
| Weight, with batteries | 3.60 lbs |
Other Specifications of the Fisher TW-82
| Ingress Protection Rating | IP65 (stands up to water jets) |
| Operating Temperature Range | -4oF to 140oF (-20oC to +60oC) |
| Relative Humidity | 0 to 95% noncondensing |
| Field Carry Weight (with Carry Case, Batteries, Ground Rod, and Conductive Tracing Cables) | 15.5 lbs |
