OKM Fusion Professional Plus 3D Ground Scanner - High-Precision Metal Detector for Treasure Hunting, Archaeology & Utility Locating | Ideal for Outdoor Exploration, Construction & Security Inspections
Free shipping on all orders over $50
7-15 days international
6 people viewing this product right now!
30-day free returns
Secure checkout
52263852
Description

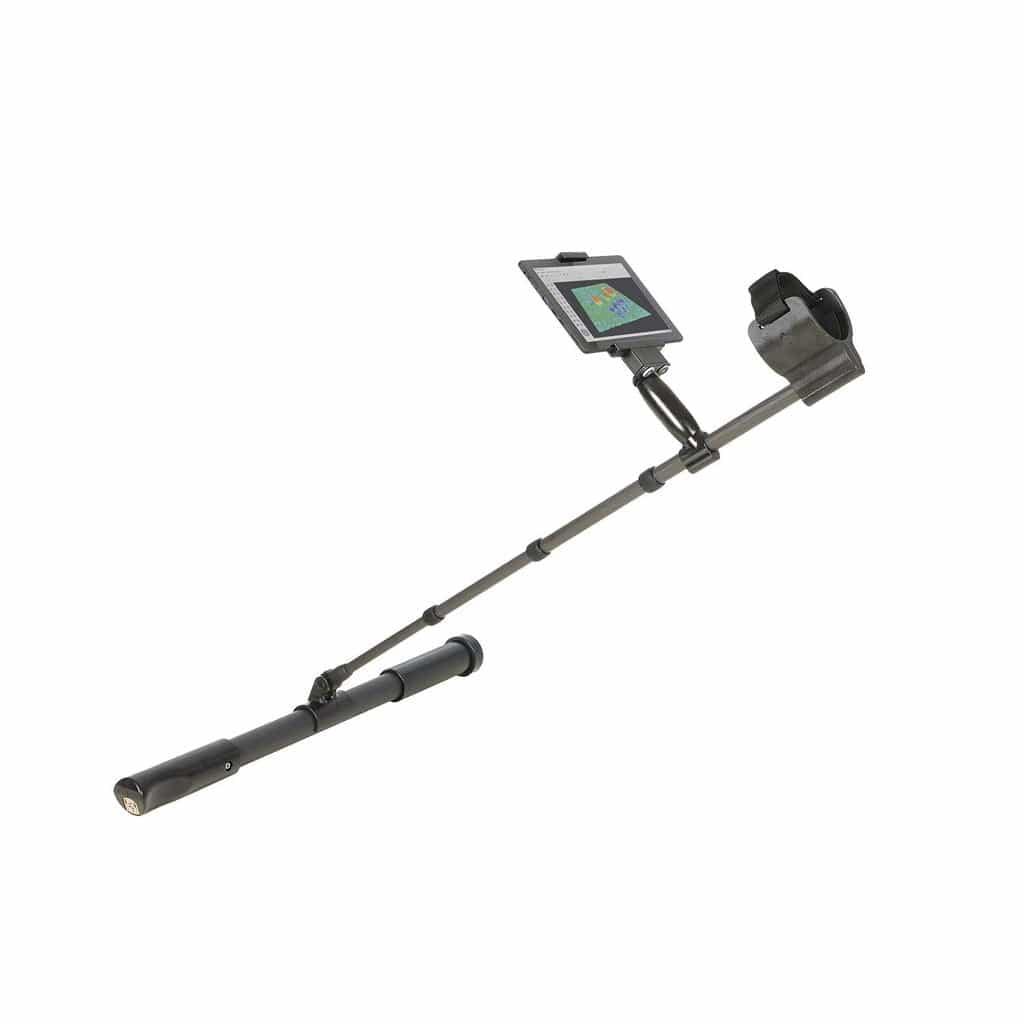

Fusion Professional Plus 3D Metal Detector by OKM
The OKM Fusion is the redesigned and improved version of the Future 2018 metal detector. It has been designed for both beginners and experts in the field. This detector offers simple operation, 3D measurements, and as well as advanced scanning functions. The OKM Fusion has a robust design, is lighter, and is now available in three different models: , , and OKM Fusion Professional Plus.
Highlights
- Warranty: 2-year warranty
- Compact: Detector for scans in vertical and horizontal orientation – supporting graphical 3D measurements, acoustic magnetic field measurements, and instant live images
- Measuring Depth: customers have found objects up to 21 m (69 ft) deep
- Use cases: Treasure hunting, cavity detection
- Operating modes: Ground Scan, Live Sound (Magnetometer), Live Stream
- Detectable objects: Treasure chests, cavities, tunnels
How the OKM Fusion Metal Detector works
The Professional Plus version of OKM Fusion can be used in both vertical (live sound, soil scan, live scan) and horizontal (ground scan, live scan) orientation.
The advanced professional plus version can be used in portrait and landscape orientation and supports the following modes of operation:
Exploration of land
Perform a 3D graphical measurement for detailed analysis on a computer.
Live Sound
Process an acoustic magnetic field measurement to detect ferrous metals.
Live Scan (Multi-Sensor, Ultrasound)
Process a live snapshot as you walk through the scanning field.
Using the SRIS search coil to locate shallow metals
One of the new detection features is the SRIS search coil that can be used to locate short-range metal objects. This coil can be individually activated by the operator while configuring the Live Sound, Ground Scan, and Live Scan (ultrasound) operating modes.
The SRIS search coil can be very useful for target point marking while digging. It's easy to detect the general position of a buried object with our 3D ground scanner and OKM Fusion metal detector, but once you begin to dig it can at times be challenging to exactly match the hidden items. When reviewing the excavated material with the SRIS search coil activated, you will no longer miss out on any small objects such as:
- Wedding rings and engagement rings.
- Earrings, brooches, bracelets, and necklaces
- Coins, buttons, badges, and pins
3D visualization of underground treasures
While scanning an unknown area and recording measurement values, the Visualizer 3D software can immediately analyze and visualize this information to display a color-coded 3D graphic of hidden objects and structures. So, you will literally "see" all buried treasures, gold objects, archaeological artifacts, and any other hidden objects before ever needing to dig.
In addition, you can determine the size, position, and depth of the detected items. So, you know exactly where to dig and how deep you must dig to find your objects of interest.
Factory Included Accessories
- Control Unit

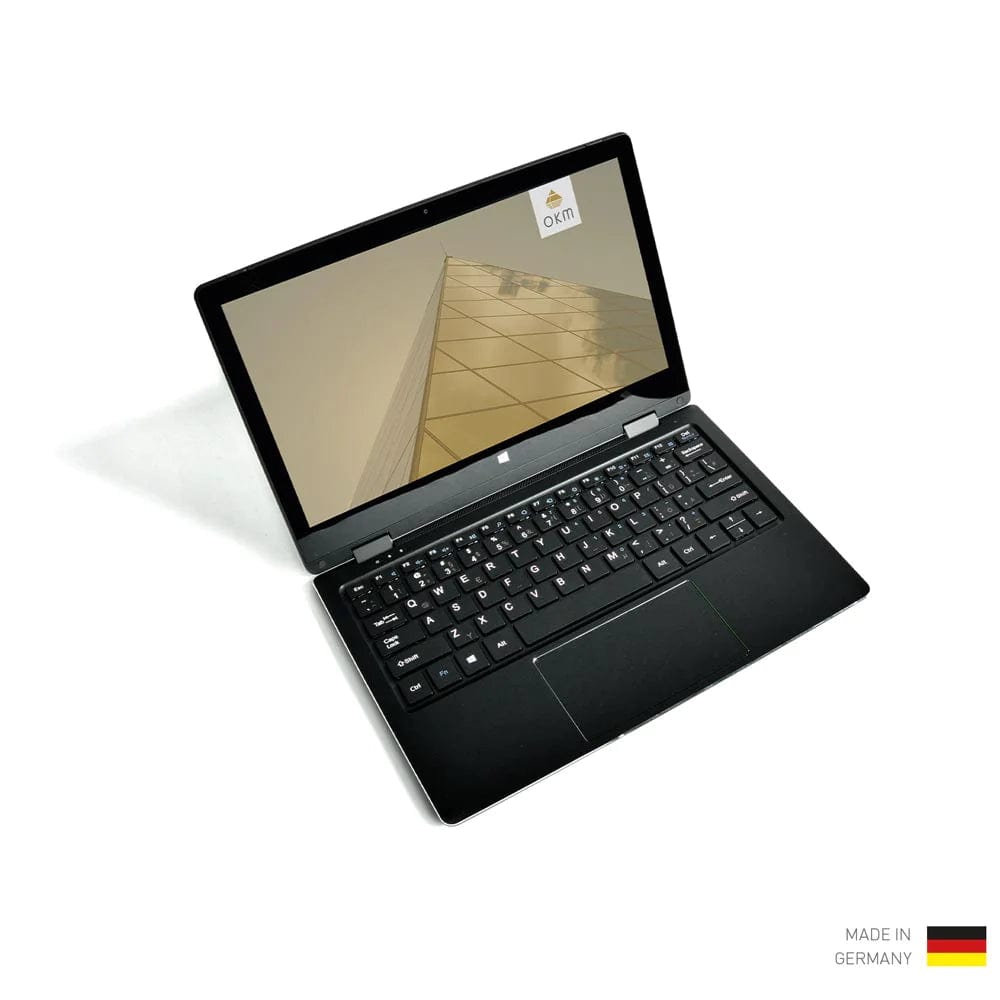

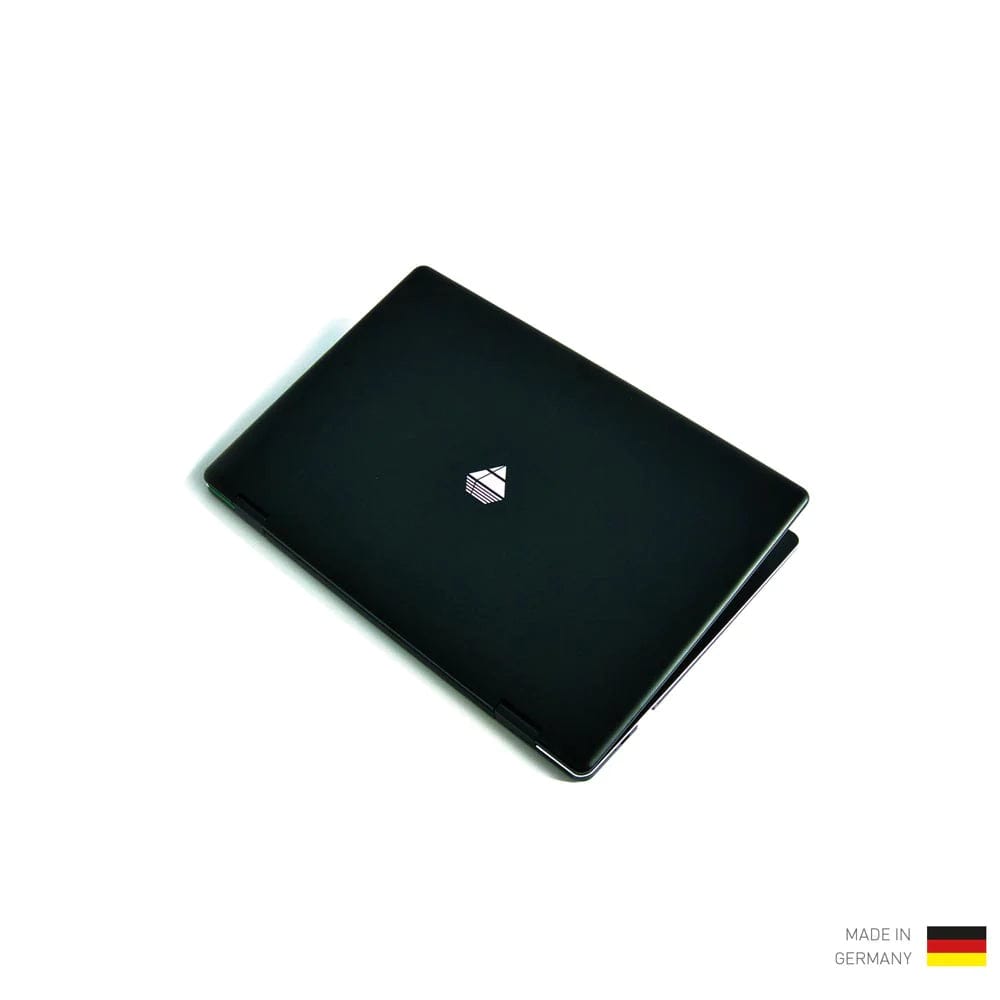

- Windows Notebook Laptop with touchscreen and 3D Visualizer Software
- Bluetooth wireless headset
- Wireless data transfer
- New SRIS search coil for small targets hallows metal parts
- Impact-resistant and waterproof Pelican protective cover
- Plus: Holder for Tablet PC
- Plus: Telescopic rod assembly
Specifications
Control unit
- Dimensions (H x W x D): 950 mm, 65 / 80 mm
- Weight: approx. 1 kg
- Processor / Main CPU: Cortex M3, 32 MHz
- Processor / Slave CPU: Cortex M0, 24 MHz
- Sample rate: 1024 values / second
- Measurement resolution: 16 bit
- Operating temperature: –10°C – 60°C
- Storage temperature: –20°C – 70°C
- Audio: Bluetooth Headphones
- Waterproof: No
- Sensor technology / Coil technology: SCMI-15-D / SRIS-18K
- Operating time: approx. 3 hours (delivered power supply, full charged battery, 25°C)
- Air humidity: 5% – 75%
- Protection Type: IP40
- Input (for Charger): 19 V DC / 3.16 A
Data transmission
- Technology: Bluetooth 5.1
- Frequency: 2.402 – 2.480 GHz
- Maximum Transfer Rate: 1 Mbps
- Maximum Transmitting Power: +8 dBm
- Maximum Range: approx. 10 m
Computer minimum requirements
- Interface (data transmission): USB 2.0
- Free disk space: minimum 250 MB
- Working memory (RAM): 2 GB
- Display: 1920 x 1080
- Processor: 1.2 GHz
- Graphics card: 1 GB RAM, OpenGL 3.3
- Operating system: Windows 10
