OKM eXp 6000 Professional 3D Ground Scanner - Metal Detector & Treasure Hunter Equipment for Archaeology, Gold Prospecting & Underground Exploration

eXp 6000 Professional Metal Detector by OKM

Cutting-edge technology has finally come to advance the work that metal detectors can do – meet the world’s first 3D ground scanner! The eXp 6000 features wireless construction and can be controlled through either a touch screen, Android video eyeglasses, or an Android/Windows Tablet. The eXp 6000 features a multilingual control unit, GPS functionality, Telescopic Rod Assembly, and a variety of sensors. Use advanced technology to your advantage with the eXp 6000!

Features

• Depth: 30 meters

• Warranty: 2-year Limited

• Total Weight: 2.98 lbs. (1.35 kgs)

• 6 Operation Modes: Ground Scan, Tunnel Scan, Magnetometer, Mineral Scan, Pin Pointer and Live Scan

• Touch Screen: Next to a multi-function Control Knob the Operator may use the built-in Touch Screen of the eXp 6000. Thus, operating the Ground Scanner is simple and fast

• Visualizer 3D: For detailed in-depth analysis of Conducted Ground Scans, the eXp 6000 offers the option to transfer its data via a USB stick to a computer with Visualizer 3D software

• Wireless Technology: Easy handling without any cables by using wireless Wi-Fi Technology. All probes are transmitting data wirelessly to the Telescopic Rod Assembly and Control Unit

• GPS Navigation: Treasure hunters who conduct many scans may enable the Internal GPS Tracker to log GPS coordinates along with their Scan Values. Thus, they can easily find each measured area again and again.

• Multilingual GUI: Offers a Graphical User Interface (GUI) that features different languages to support each operator’s understanding to the best of our ability. All menu elements and dialogs have been translated into more than 12 languages.

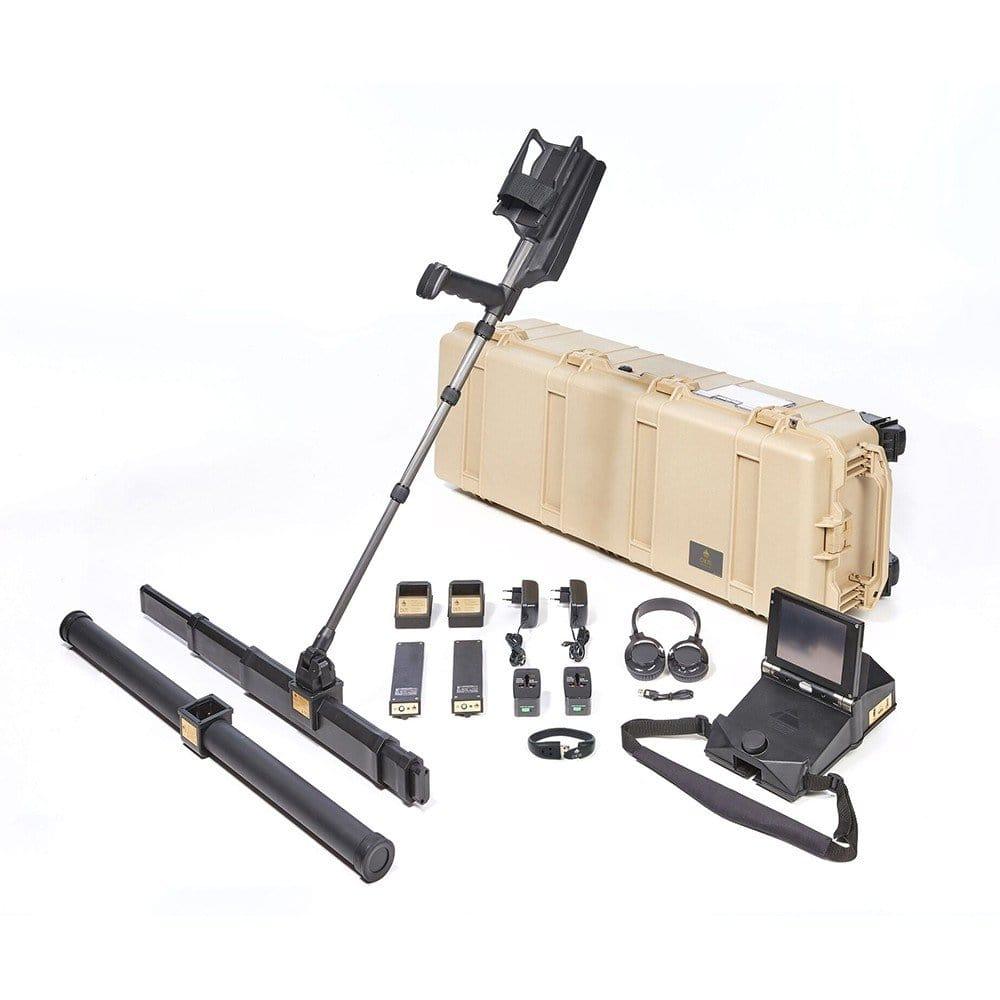

Factory Included Accessories

• (1) USB Stick
• (2) Power Pack
• (1) Super Sensor
• (1) Telescopic Probe
• (1) Wireless Headphones
• (1) eXp 6000 Control Unit
• (1) Telescopic Rod Assembly
• (1) 3D Software (Visualizer 3D)
• (1) Waterproof and Shock Resistant Peli Case
• (2) Charger, Docking Station and Travel Adapter
• *(Optional) Tunnel Sensor
• *(Optional) LiveStream Sensor
• *(Optional) Android Video Eye Glasses
• *(Optional) Android / Windows Tablet PC

Powerful Treasure Hunting Ground Scanner with 3D Scan Images

The eXp 6000 ground scanner is OKM's top-of-the-line 3D metal detector, an ultra-modern geophysical detection instrument that is capable of locating buried artifacts, lost treasures, subsurface anomalies, underground utilities as well as other hidden structures. It provides its users non-destructive examination methods that render graphical images of subterranean targets prior to any excavation needing to be conducted.

Based on practical experiences with the detector’s ancestors, eXp 4500 and eXp 5000, the revolutionary release of the eXp 6000 ground scanner opens up a whole new world of opportunities for serious treasure hunters, gold seekers, archaeologists, prospectors, ground research companies, and metal detecting enthusiasts.

The eXp 6000 ground scanner is a perfect detection device able to penetrate depths much further than typical metal detectors to locate buried sub-surface anomalies. This 3D metal detector can be used for the following tasks and applications:

• Prospecting natural gold minerals
• Pinpointing valuable artifacts and treasure finds
• Ground surveying battlefields, historic settlements and ancient sanctuaries
• Treasure hunting of buried artifacts and metal items made of gold, silver, copper and bronze
• Detection of underground non-metal anomalies like walls, foundations, statues, ancient tombs, caves, sepulchers, chambers, etc.

All components of the eXp 6000, including its control unit, telescopic rod assembly, and measuring probes, are completely wireless and will connect to one another via Wi-Fi. The integrated GPS receiver, activatable by the user, is able to store GPS coordinates along with measured values. Thus, you can always use the GPS navigation features of the eXp 6000 to easily locate the areas of your recorded scans again and again, even after a long time has passed since the original ground survey and scan analysis.

Measuring Probes

The eXp 6000 metal detector comes with a variety of specialized measuring probes. Each measuring probe is equipped with an orientation sensor (gyroscope) that assists in conducting scan images of high quality. By keeping track of the probe's orientation, the operator can immediately correct inclinations of the connected measuring probe while scanning the underground. The user will directly receive visual indication onto the screen or video eye glasses of the eXp 6000 as well as an acoustical signal.

Operating Modes

The eXp 6000 supports various operating modes that can be used to detect underground treasures, artifacts, facilities, and voids. Depending on the operator's task or application, the appropriate operating mode has to be used in conjunction with one of the measuring probes.

Wireless Android Devices (Glasses and Tablet PC)

As an alternative to the folding display, the operator of the eXp 6000 ground scanner can connect any modern Android Tablet PC or Android video eyeglasses by Wi-Fi. This can be especially useful either when replacing the display or allowing additional user(s) to watch along while the operator uses the detector. Especially the video eyeglasses can support your work by bringing the screen information closer to the user's eyes and reducing the light emission of the standard display.

Both alternatives are also very helpful while giving a technical demonstration of the eXp 6000 metal detector or supervising the operator's work.

Visualizer 3D - 3D Visualization Software for eXp 6000 Ground Scanner

For additional in-depth analysis of conducted ground scans, the user of the eXp 6000 ground scanner can transfer the stored scan images to a USB stick. Those files can then consequently be opened by OKM's Visualizer 3D software to optimize, measure, and improve the recorded scan data. The visualization software has already proved its capabilities. Many treasures, buried artifacts, as well as other hidden objects have been located by evaluating measurements within Visualizer 3D.

The following functionality is included in the Visualizer 3D software:

• Color filtering

• Selection of pre-configured soil types for depth measurement

• Variable render and display options (wireframe, resolution, colors, etc.)

• View GPS location in google maps (browser and internet connection required)

• Measuring the position, size, and depth of localized treasures, artifacts, and so forth. Characterize scan images with details like description, area dimensions, and soil conditions

• Automatic and manual correction of erroneous signals (caused by probe inclination during recording)

The indicated technical specifications of the eXp 6000 ground scanner and 3d metal detector are average values only. While operating the eXp 6000 and its accessories as well as by future improvements these values may change.

Technical Specifications:

• 2 Year Warranty
• Control Unit: The Control Unit of the eXp 6000 is Powered by Wireless Power
  Packs and is the Main Controller of the Complete Ground Scanning System
• Waterproof: No
• Safety Class: IP40
• Air Humidity: 5 % - 75 %
• Weight: 2.98 lbs (1.35 kgs)
• Feedback: Acoustic, Visual
• Voltage: 11.8 - 14.8 VDC, 30 W Maximal
• Data Transmission Rate: 11 Mbps – 54 Mbps
• Working Memory (RAM) : 4 GB Kingston HyperX
• Data Memory : 16 GB Industrial SDCard, Class 10Storage Temperature : -4° F - 140° F (-20° C - 60° C)
• Operating Temperature : 14° F - 122° F (-10 °C – 50 °C)
• Operation Distance (line of sight to probe) : Max. 30 m
• Display: 6.5" Diagonal, 1024 x 768 Pixel TFT Color, 650 cd/qm
• Data Transmission Technology: WiFi 802.11n a/b/g, MIMO 2x2
• Dimensions (H x W x D) : 8.6" x 6.3" x 11.6" (220 x 160 x 295 mm)
• Computer : QuadCore AMD @ 2GHz, OpenGL4.2 HD Radeon GPU
• Operating Time (fully charged Power Pack, 77 °F (25 °C)) : Approx. 3 Hours

Computer, Minimum Requirements (Computer Not Included)

• CD-ROM Drive : Minimum 4x
• Processor : Minimum 1.5 GHz
• Port (Data Transmission) : USB
• Free Memory : Minimum 50 MB
• Working Memory (RAM) : Minimum 512 MB
• Graphic Card : Minimum 256 MB, OpenGL-Compatible
• Operating System : Windows Vista, Windows 7, Windows 8, Windows 10
• Super Sensor
• Length : 39" (100 cm)
• Weight : About 1.7 lbs (770 g)
• Sensor Technology : TCFX-01-A
• Receiver : Dual / Hi-Gain – Vertical - Geophysical Phase Reader – EMSR
• Telescopic Probe
• Weight : About 2.2 lbs (1 kg)
• Length : 19" - 47" (50 - 120 cm)
• Sensor Technology : TCFX-01-A
• Receiver : Dual Geophysical Phase Reader – EMSR
• Tunnel Sensor
• Length : 19" (50 cm)
• Weight : About 1.15 lbs (520 g)
• Sensor Technology : TCFX-01-A
• Receiver : Dual Geophysical Phase Reader – EMSR
• LiveStream Sensor
• Length : 19" (50 cm)
• Weight : About 1.8 lbs (820 g)
• Sensor Technology : TCFX-01-A
• Receiver : Quad Geophysical Phase Reader – EMSR
• GPS Receiver / eGPS
• Cold Start : 60 s
• Warm Start : 1 s
• Input Voltage : 5 V DC
• Data Transfer Rate : 1 s
• Weight : About .13 lbs (60 g)
• Input Current (typical) : 46 mA
• Input Current (maximum) : 350 mA
• Dimensions : 2" x 2" x .78" (50 x 50 x 20 mm)

Features:

• Detection of metals, cavities, gold, and buried objects

• Includes 4 Sensors: Telescopic Probe, Super Sensor, Livestream Sensor, and Tunnel Sensor

• 6 Operation Modes: Ground Scan, Tunnel Scan, Magnetometer, Mineral Scan, PinPointer, and Live Scan

• Touch Screen: Next to a multi-function control knob the operator may use the built-in Touch Screen of the eXp 6000. Thus, operating the Ground Scanner is simple and fast

• Layout Selection: The eXp 6000 control unit contains several layouts and color schemes to optimize work done under extreme light conditions such as bright sunlight or dark night

• Orientation Sensor: Each measuring probe is equipped with an Orientation Sensor to assist in conducting scan images of high quality. This helps users to keep the probe level to the ground

• Visualizer 3DD: For detailed in-depth analysis of conducted ground scans, the eXp 6000 offers the option to transfer its data via a USB stick to a computer with Visualizer 3D software

• Wireless Technology: Easy handling is enabled as the detector operates without any cables by instead using wireless Wi-Fi Technology. All probes transmit data wirelessly to the Telescopic Rod Assembly and Control Unit

• Livestream: The Livestream Sensor allows an immediate view into the underground soil and its hidden treasures. It is perfectly used in conjunction with Android video eye glasses.

• Telescopic Probe: One of OKM’s unique inventions is this measuring probe. The Telescopic Probe can be extended or shortened to different lengths to scan even large areas in short period of time.

• GPS Navigation: Treasure hunters who conduct many scans may enable the Internal GPS Tracker to log GPS Coordinates along with Scan Values. Thus, operates can easily re-locate already visited areas.

• Multilingual GUI: Offers a Graphical User Interface (GUI) in multiple languages to support operators to the best of our ability. All menu elements and dialogs have been translated into more than 12 languages.

Accessories for eXp 6000 Ground Scanner & Metal Detector

The eXp 6000 metal detector and 3D ground scanner are available in 2 pre-configured packages:

Professional (the basic package) and (the complete package).

eXp 6000 Control Unit

The control unit is the main processing unit of the 3D metal detector. It is equipped with a modern touch screen, automatic brightness control, and various graphical layouts. All operating modes of the ground scanner will be controlled by this unit.

Professional: 1x

Professional Plus: 1x

Telescopic Rod Assembly

The telescopic rod assembly is used to supply the measuring probes with power. It also forwards the measured values from the connected antennas/sensors to the control unit of the eXp 6000 ground scanner via Wi-Fi. Thus, cables are no longer needed to operate the 3D metal detector. Additionally, the telescopic rod assembly has a built-in GPS receiver that allows for easy embedding of GPS information into a ground scan (but only if activated by the user).

Professional: 1x

Professional Plus: 1x

Power Pack

The Power Pack is utilized by the control unit as well as the telescopic rod assembly as its power supply. It provides an indication of its charging state via LED.

Professional: 2x

Professional Plus: 4x

Charger, Docking Station, and Travel Adapter

To recharge the Power Packs, a docking station and charger is required which is automatically included in any of the eXp 6000 packages. Furthermore, we send you a travel adapter for a complete charging accessories package in order to ensure the Power Packs can be recharged worldwide.

Professional: 2x

Professional Plus: 2x

Wireless Headphones

The eXp 6000 ground scanner can be operated with standard wired headphones, wireless Bluetooth headphones, or simply by using the internal speaker. For maximum comfort, wireless Bluetooth headphones come included in each of our packages.

Professional: 1x

Professional Plus: 1x

USB Stick

Transferring scanned images from the eXp 6000 control unit to the Visualizer 3D software is very easy. Simply place the USB stick inside the control unit and copy all files across, then insert the USB stick into a Windows computer or Windows Tablet PC to view the files in the Visualizer 3D program.

Professional: 1x

Professional Plus: 1x

3D Software (Visualizer 3D)

The Visualizer 3D software is used to optimize scan images that have been conducted with the eXp 6000 ground scanner and 3D metal detector. The software is able to determine the depth and size of detected objects, among many other functions.

Professional: 1x

Professional Plus: 1x

External GPS Receiver

The external GPS receiver is mainly used for pure navigation purposes after conducting a ground scan with GPS information. The user is now able to navigate to this place by using the external GPS receiver without first having to activate the telescopic rod assembly.

Professional: -

Professional Plus: 1x

Waterproof and Shock Resistant Peli Case

The eXp 6000 metal detector and 3D ground scanner is held inside a shock-resistant and waterproof Peli case and thus protected against environmental influences. This also makes the detector perfectly safe for traveling and shipping.

Professional: 1x

Professional Plus: 1x

Telescopic Probe

The telescopic probe is an invention of OKM to reduce the number of ground scanning probes users needed to take with previous eXp detectors. Thus, the operator can decide whether he wants to use a smaller extension to find small objects or a larger extension for larger objects.

Professional: 1x

Professional Plus: 1x

Super Sensor

The Super Sensor is a very high-resolution measuring probe that locates even small metallic objects. This is also one of the best ground scanner probes to find natural gold minerals. Not only will gold miners like the Super Sensor but also treasure hunters find buried ancient treasures, jewelry, and other historic artifacts.

Professional: 1x

Professional Plus: 1x

Tunnel Sensor

The Tunnel Sensor is used to detect underground tunnels, caves, shelters, graves or sepulchers. Irrespective of the detection of metallic objects the strength of this probe is the location of underground voids.

Professional: Optional

Professional Plus: 1x

LiveStream Sensor

Treasure hunters will love the Livestream Sensor because it enables the direct receipt of views into the underground and the scanning of a larger area in a short timeframe. Thus, the operator can make hassle-free decisions about underground situations.

Professional: Optional

Professional Plus: 1x

Android Video Eye Glasses

Using the Android video eye glasses with the eXp 6000 ground scanner brings the screen directly in front of your eyes. The glasses are completely portable, wireless, and come equipped with a rechargeable battery.

Professional: Optional

Professional Plus: 1x

Android / Windows Tablet PC

For easy field operation, the Visualizer 3D software may be loaded into a mobile Windows Tablet PC. The eXp 6000 operators can then analyze scan images quickly with the Visualizer 3D program.

Most often, small teams of people work together to scan a field. In such cases, it can be beneficial to watch the operator see how the scan images are created. By connecting an Android Tablet PC or even the Android video eyeglasses all participants can follow the operators on a separate screen.

Professional: Optional

Professional Plus: Optional
