OKM Evolution NTX Professional 3D Ground Scanner for Metal Detection, Treasure Hunting & Archaeology - Perfect for Underground Exploration, Gold Prospecting, and Utility Locating

Evolution NTX - 3D Ground Scanner by OKM

Stop searching with regular metal detectors and Start searching with OKM Evolution NTX!

Highlights

• Entry-level: This 3D ground scan technology is perfect for anyone that has not used it before. It is also connected with a VLF coil for locating treasures
• Measuring Depth: Capable of finding objects 8 m (26 ft) deep
• Uses: treasure hunting, cavity discovery, natural gold prospecting
• Operating modes: Ground Scan & Live Sound
• Detectable objects: Treasure chests, pits, cavities, hidden tunnels
• Warranty: Includes 2 years of warranty. The batteries have 6 months of warranty

The Evolution NTX 3D ground scanner is perfect for a huge variety of search-related activities, aiding treasure hunters, gold diggers, and archaeologists in locating buried objects, hidden artifacts, and other lost-and-found objects, including, but not limited to:

• Lost and found valuables (rings, coins, jewelry, wedding rings)
• Treasures and artifacts
• Antique boxes, chests, chambers, and sepulchers

Unlike other metal detectors, the OKM Evolution NTX uses 3D-graphic imagery technology to scan for treasures underground and detect anomalies. This will advise you of the size and depth of potential finds before you even start digging, saving you time and resources in the process! The penetration capacity of the OKM Evolution NTX is 8-10 meters in depth. Which is 26ft+.

There have been significant improvements and optimizations made to this new model, and feedback from regular OKM users has been extremely positive. New features include:

• New batteries which are long-lasting and rechargeable
• Color touchscreen with higher resolution
• Bluetooth headset integration
• More compact and robust design
• Improved sensor and coil technology
• Of course, the OKM Evolution NTX still comes packed full of all the well-proven features you know and love from the previous Evolution model: Telescopic probe with a search coil
• LED light to search in dark environments
• Full-color display with touchscreen
• Live sound mode with VLF metal detector
• 3D scanning mode with GST / EMSR scanner
• Multilingual user interface
• Graphical scan analysis with Visualizer 3D software
• These features and improvements make the OKM Evolution NTX metal detector a valuable tool for all treasure hunters, archaeologists, gold prospectors, and historians alike

Ground scanning and metal detection with the OKM Evolution NTX

The OKM Evolution NTX 3D ground scanner supports two modes of operation which aid in investigating underground soils for hidden objects and structures. The length of the detector can be individually adjusted to align with the height of your body. This way you can make this metal detector your metal detector, massively facilitating your work process.

Live Sound

This mode of operation activates the detector to locate shallow metal objects such as coins, rings, and other jewelry. Along with an acoustic output, you are also provided with a simple graphical indication of the signals to help you locate your next finds!

3D scanning

This mode of operation is for 3D graphical explorations: first, all scanned data is stored in the memory of the device. This information can then easily be transferred to the Visualizer 3D software OKM in order to generate 3D graphical images of underground objects and structures.

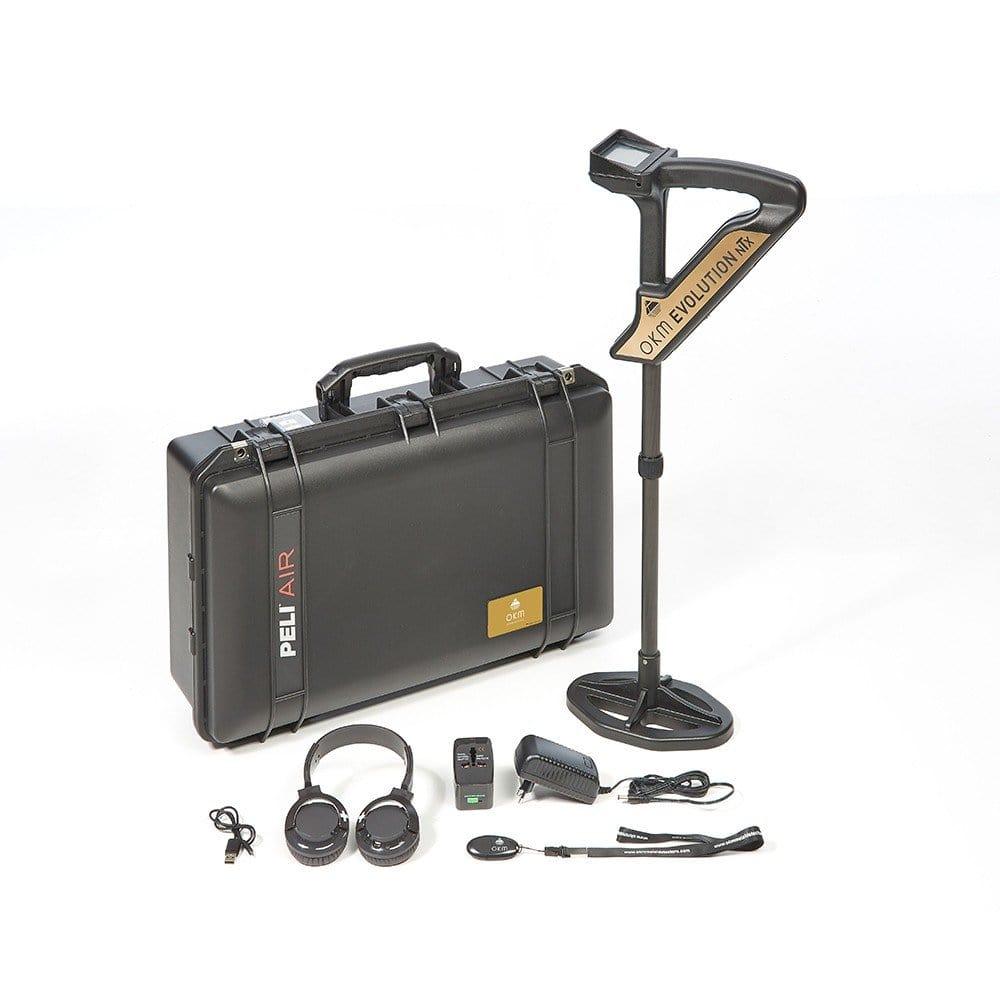

Factory Included Accessories

• 3D software ( "Visualizer 3D" )

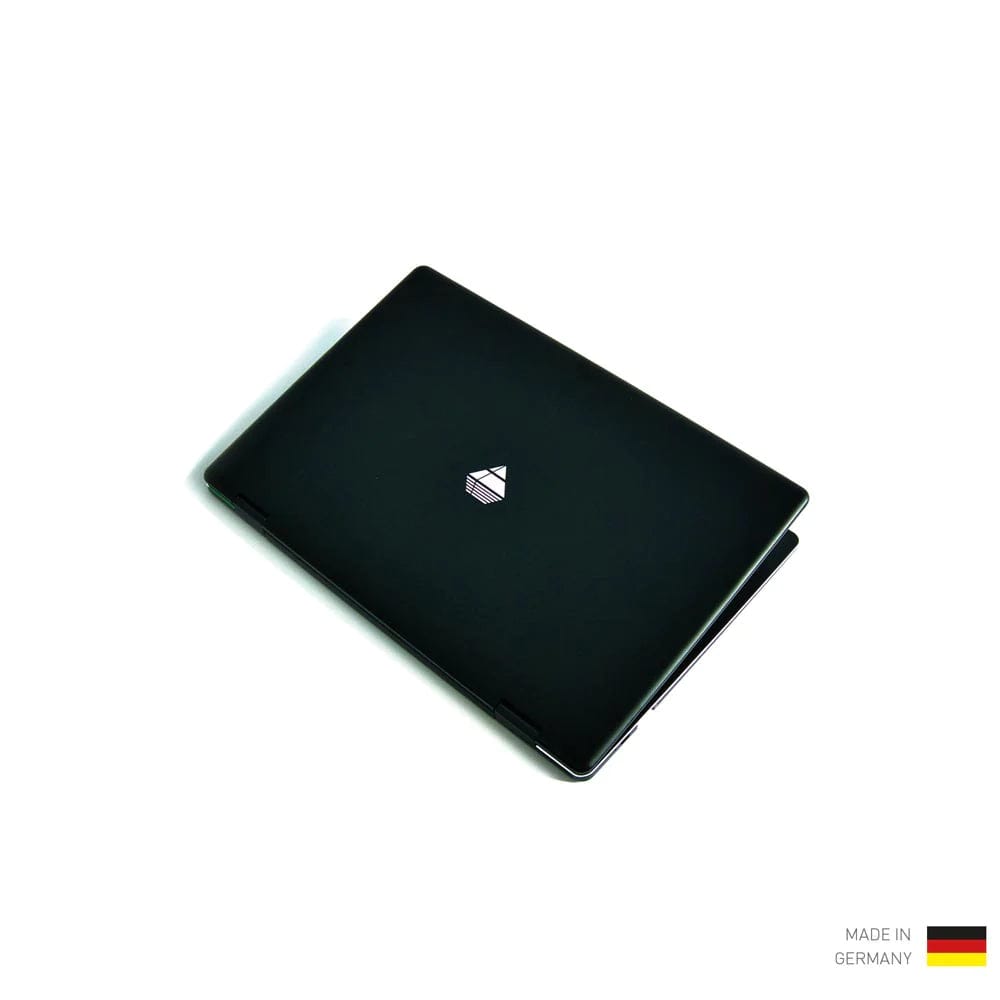

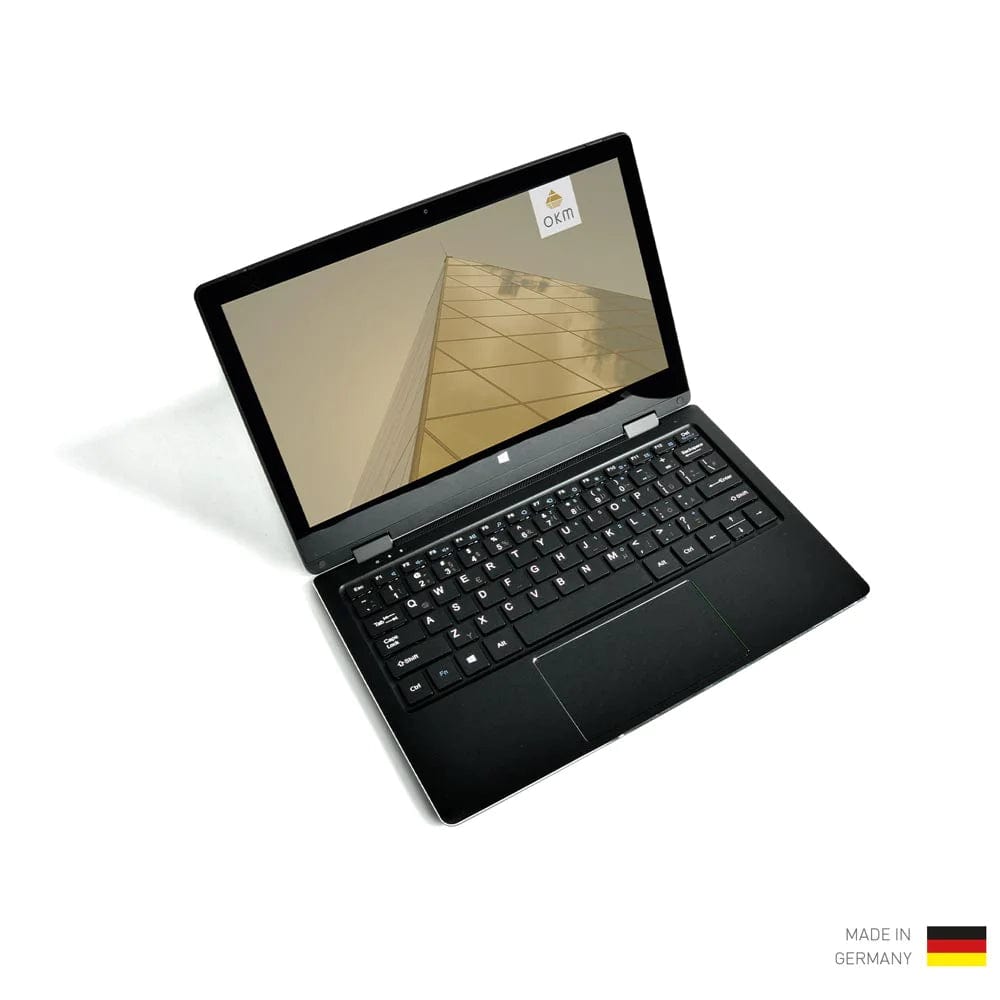

• Windows Notebook Laptop with touchscreen and 3D Visualizer Software
• Charger for the control unit
• Control unit
• Travel adapter
• USB Bluetooth dongle
• Waterproof and shock-resistant Peli case
• Wireless headphones (Bluetooth)
• User's manual

Specifications

Control unit

• Dimensions (H x W x D): 540–810 x 150 x 280 mm
• Weight: approx. 1.5 kg
• Input voltage (max.): 19 V DC, 3.16 A, 60 W
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Display: 3.5” Resistive touch, 480 x 320 Pixel
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Technology: GST / EMSR
• Sensor technology / Coil technology: SCMI-15-D / VLF
• Air humidity: 5% – 75%

Data transmission

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum Transfer Rate: 1 Mbps
• Maximum Transmitting Power: +8 dBm
• Maximum Range: approx. 10 m

Computer minimum requirements

• Interface (data transmission): USB 2.0
• Free disk space: minimum 250 MB
• Working memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10

The technical data are average values. Minor deviations are possible during operation.
