OKM Fusion Professional 3D Ground Scanner - Metal Detector & Treasure Hunter for Archaeology, Gold Prospecting & Underground Exploration - Perfect for Outdoor Adventures & Historical Research

 OKM Fusion Professional - 3D Ground Scanner

The OKM Fusion has been designed for starters in the field of 3D measurements and offers easy operation as well as advanced scanning features. The 3D ground scanner OKM Fusion supports treasure hunters, gold seekers, adventurers, and archaeologists to discover lost treasures, buried artifacts, hidden places, and other historical items.

Highlights

• Warranty: 2-years warranty
• Compact: Treasure detector with Visualizer 3D software and Windows tablet PC
• Measuring Depth: Customers have found objects up to 21 m (69 ft) deep
• Use cases: Treasure hunting, cavity detection
• Operating modes: Ground Scan, Live Sound (Magnetometer)
• Detectable objects: Treasure chests, cavities, tunnels

The professional version is solely used in vertical orientation and supports the following operating modes:

• Ground Scan
  Conduct a graphical 3D measurement for detailed analysis on a computer
• Live Sound
  Process an acoustical magnetic field measurement to detect ferrous metals

 Using the SRIS search coil to locate shallow metals

One of the new detection features is the SRIS search coil that can be used to locate short-range metallic objects. This coil can be activated individually by the operator while setting up the operating modes Live Sound and Ground Scan. The SRIS search coil can be very useful in pinpointing targets while digging. It is very straightforward to detect the general position of a buried object with our 3D ground scanner and metal detector, but once you start digging it can at times be hard to exactly locate the right spots of the hidden item. By checking the excavated material with an activated SRIS search coil you will no longer miss any small objects like:

• Wedding bands and engagement rings
• Earrings, brooches, bracelets, and necklaces
• Coins, buttons, badges, and pins

3D visualization of underground treasures

While scanning an unknown area and recording the measured values, the Visualizer 3D software can immediately analyze and visualize this information to display a color-coded 3D graphic of hidden objects and structures. Thus, you will literally "see" all buried treasures, gold objects, archaeological artifacts, and any other hidden objects before you start digging. Additionally, you can determine the size, position, and depth of your detected items. So, you will always know where to dig and how deep to dig to find the objects of your choice.

Factory Included Accessories

• Control Unit

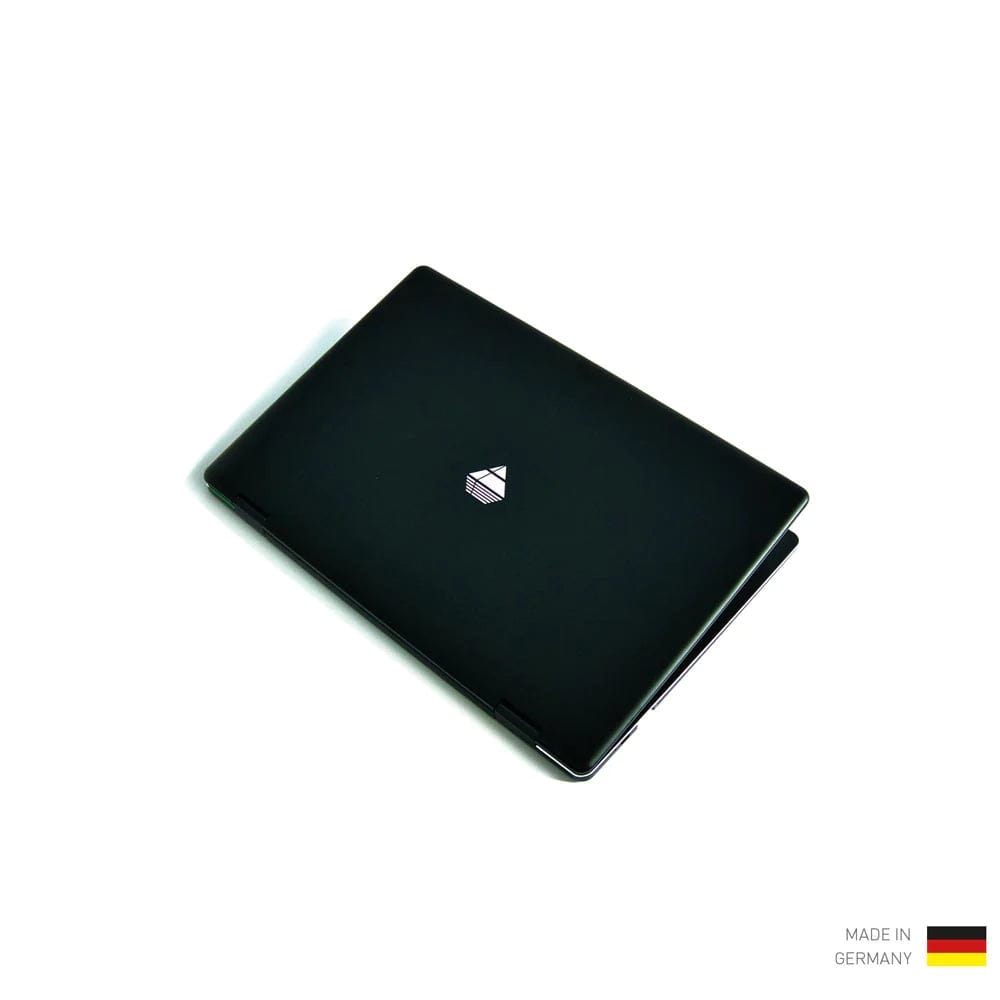

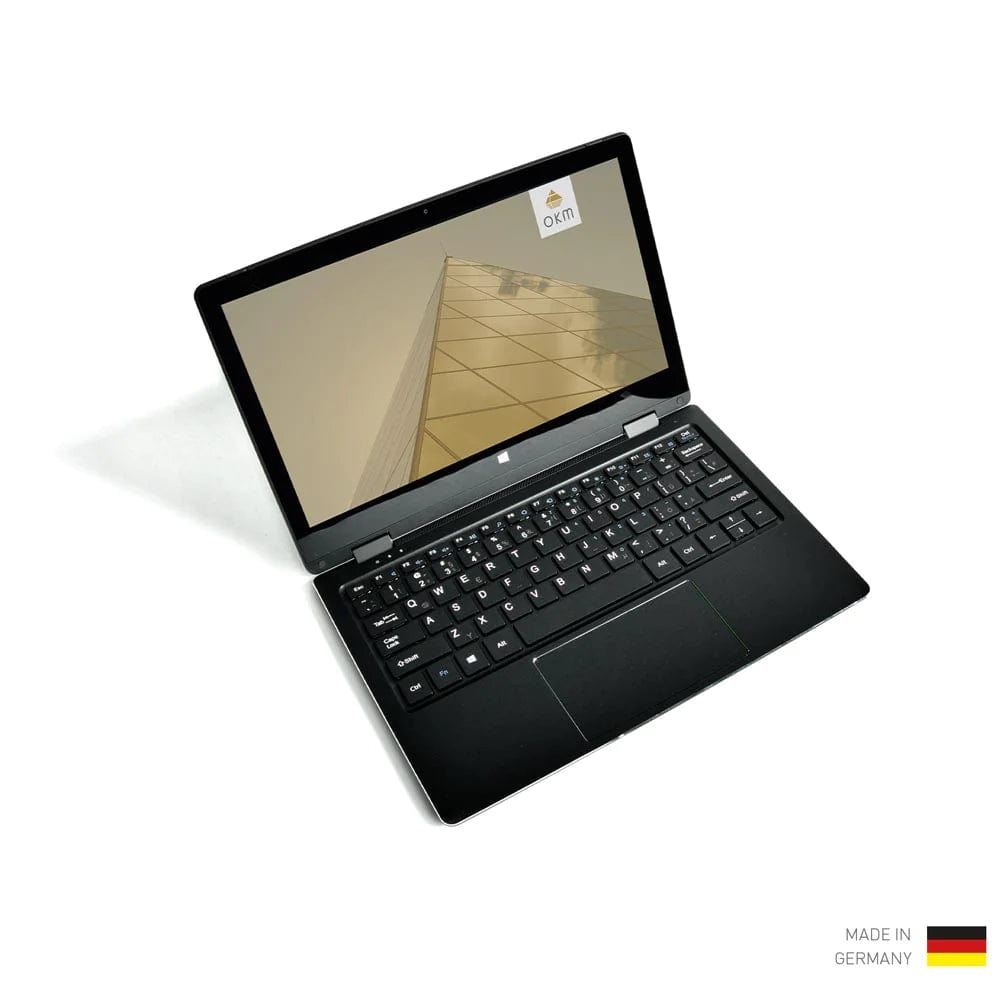

• Windows Notebook Laptop with touchscreen and 3D Visualizer Software
• Bluetooth wireless headphones
• Wireless data transfer
• New SRIS search coil for small shallow metal targets

• Well packed in a waterproof and shock-resistant Pelican case
• User Manual

Specifications

Control unit

• Dimensions (H x W x D): 950 mm, 65 / 80 mm
• Weight: about 1 kg
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Bluetooth Headphones
• Waterproof: No
• Sensor technology / Coil technology: SCMI-15-D / SRIS-18K
• Operating time: approx. 12 h (internal battery)
• Air humidity: 5% – 75%
• Protection Type: IP40
• Charging Time: approx. 3 h (internal battery)
• Input (for Charger): 19 V DC / 3.16 A

Data transmission

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum Transfer Rate: 1 Mbps
• Maximum Transmitting Power: +8 dBm
• Maximum Range: approx. 10 m

Computer minimum requirements

• Interface (data transmission): USB 2.0
• Free disk space: minimum 250 MB
• Working memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10
