OKM Rover C4 Professional 3D Ground Scanner - Metal Detector & Treasure Hunter for Archaeology, Gold Prospecting & Utility Locating | Perfect for Outdoor Exploration & Underground Detection

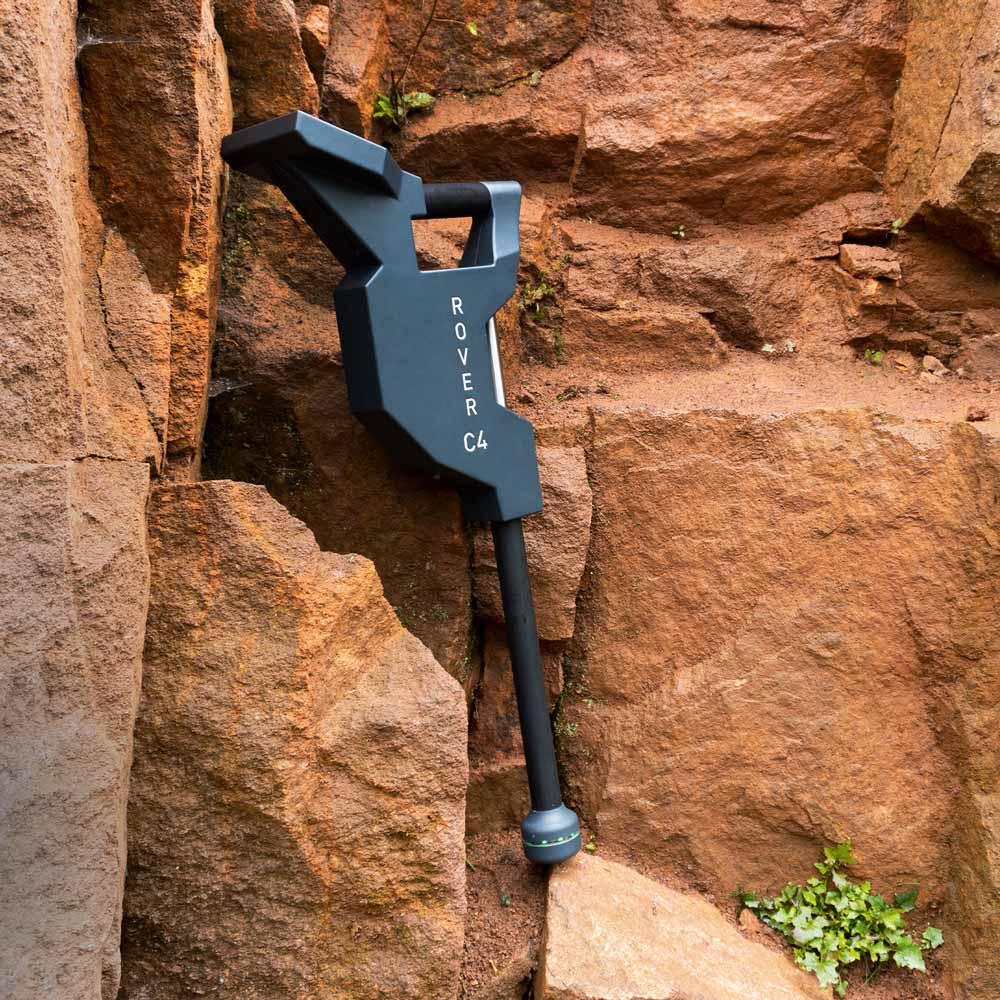

OKM Rover C4 Metal Detector

Highlights

• A World Wide Best Seller: 3D ground scanner and metal detector
• Depth: Objects can be found to 25 m (82 ft) deep
• Uses: treasure hunting, natural gold prospection
• Operating modes: 3D Ground Scan, Pinpointer, Magnetometer, Mineral Scan
• Detectable objects: natural gold minerals, treasure chests, jewelry, militaria

This detector is easy to handle via its touch screen. It can detect lost treasures (coins, rings, jewelry, etc.) as well as void structures (tunnels, caves, chambers, etc.). The detector is also equipped with an innovative LED orbit which indicates underground targets visually. While scanning the ground, this LED sphere emits colored light to visualize detected metals and cavities.

We improved the metal detection technology of the Rover series and created the OKM Rover C4. With this metal detector and 3D ground scanner, we have massively simplified your treasure hunting experience. We have combined three previous detectors (rover OKM C, Rover C II, and Rover Gold) to create the Rover C4, our best version yet.

This treasure detector is easy to operate via the provided touch screen. It can detect lost treasures (coins, rings, jewelry) as well as empty structures (tunnels, caves, chambers, sepulchers). The detector is also equipped with an innovative LED orbit which visually indicates targets subways. When scanning the floor, this LED sphere emits colored light to visualize the detected metals and cavities.

The additional features of the Rover C4 are:

• Supported operating modes: ground scan, pinpointer, mineral scan, magnetometer
• Graphical user interface in many different languages
• Operational touch screen with alternative hardware buttons
• Multi-level LED illumination for operating the detector in dark environments
• Wireless data transfer
• 4 separate memory areas for storing recorded measurement data
• Standard and super sensor probe with innovative LED orbit

Ground scan with the Rover C4 metal detector

One of the most versatile modes of operation in our 3D metal detectors is Ground Scan. This function is used to scan a rectangular area for measurement data of underground structures and objects.

The detectable elements that can be found with the Rover C4 3D ground scanner are:

Lost treasures and hidden precious metals

Treasure chests, gold coins, jewelry, silverware, statues, valuables in general, buttons, and medals.

Underground tunnels and cavities

Tunnels, tombs, chambers, cellars, sepulchers, booths, shelters, and bunkers.

Natural gold minerals

Gold ore, gold deposits, and gold veins.

When walking across the field following a certain movement (parallel or zig-zag), the treasure hunter scans the area of interest; using the recorded data, the Visualizer 3D software then creates a 3D image that represents all detected underground objects. This way, you'll know where and how deep the treasures are in the ground.

3D data analysis with the Visualizer 3D software

All data that was recorded with the Rover C4 metal detector during an earth or mineral scan can be transferred to the Visualizer 3D software to create a detailed three-dimensional analysis.

During this analysis you can:

Identify potential objects and hidden treasures

You will see that targets are represented by different colors. The color information will tell you whether it is a ferrous metal (iron, steel, ...), precious metal (gold, silver, bronze, copper, ...), or an empty structure (cave, tunnel, tomb, chamber, ...).

Determine position and depth

The software shows the position of the detected anomalies and, depending on the soil chosen, the depth of the burial of the target soil.

Calculate object dimensions

Along with depth information, Visualizer 3D can also calculate the dimensions of targets hidden and buried elements.

Package Includes

• Control Unit
• Carrying Tube
• Windows Notebook Laptop with touchscreen and 3D Visualizer Software
• USB Bluetooth Dongle

• Super Sensor with LED Orbit

• Standard Probe with LED Orbit
• Wireless Headphones (Bluetooth)

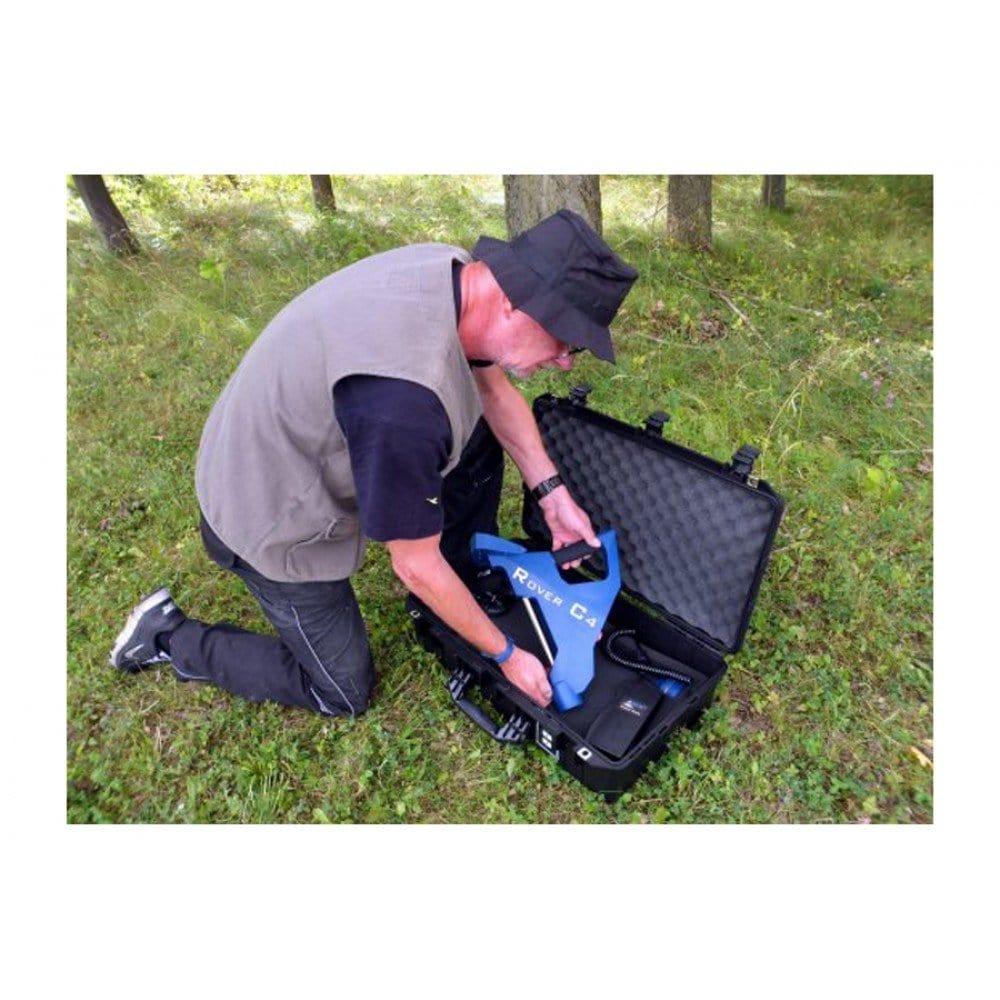

• Waterproof and Shock Resistant Peli Case
• Power Pack Incl. Charger and Travel Adapter

Specifications

Control unit

• Dimensions (H x W x D): 390 x 300 x 140 mm
• Weight: about 1.5 kg
• Input voltage (max.): 19 V DC, 3.16 A, 60 W
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Display: 3.5” Resistive touch, 480 x 320 Pixel
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Air humidity: 5% – 75%

Standard Probe

• Weight: 0.4 kg
• Length: 445 mm
• Diameter tube / LED Orbit: 35 mm / 65 mm
• Technology: SCMI-15-D

Super Sensor

• Weight: 0.9 kg
• Length: 960 mm
• Diameter tube / LED Orbit: 50 mm / 65 mm
• Technology: SCMI-15-D

Data transmission

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum Transfer Rate: 1 Mbps
• Maximum Transmitting Power: +8 dBm
• Maximum Range: approx. 10 m

Computer minimum requirements

• Interface (data transmission): USB 2.0
• Free disk space: 250 MB
• Working memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10
